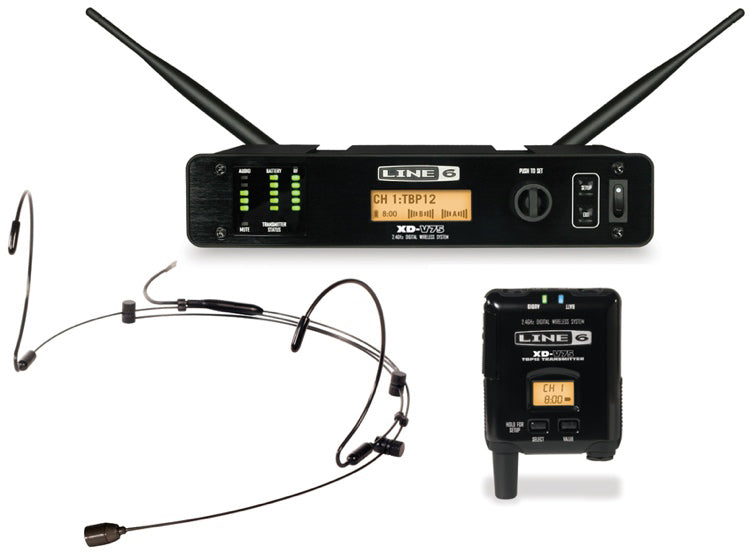

XD-V75HS sets a new standard in wireless mircophone systems for active musicians, performers, and presenters.
With 14 channels of 24-bit, 10Hz–20kHz, compander-free performance, the XD-V75HS provides unmatched full-range audio clarity and license-free operation worldwide.
Digital Channel Lock (DCL) technology provides encoded digital transmission protecting every nuance of your vocal performance.
DCL distinguishes XD-V75HS digital audio from any other 3rd-party signal including Wi-Fi, guaranteeing signal integrity across the entire 300ft (100-metre) range.
The XD-V75HS includes a full complement of advanced professional features including signal encryption, dynamic filters, gain control, channel scanning and more to handle the most complex applications.
Built for rock-solid performance night after night, the XD-V75HS receiver is housed in a robust aluminium chassis.
The 1/2U receiver includes rack ears, antenna relocation accessories and rack mounting hardware.
Key Features:
- Premium omni-directional condenser capsule - for professional hands-free performance available in black or tan (listing is for black version)
- License free operation worldwide
- Exclusive Line 6 EQ filter modeling technology to optimize the system to your vocal and performance style - choose from nine distinct EQ filter model types.
- Accurate and precise vocal and instrument reproduction with full-range 10Hz - 20kHz (-2.5dB) AF frequency response, wide 115dB dynamic range (A weighted), superior transient response, and 24-bit digital conversion
- Proven 4th-generation digital wireless technology surpasses analog wireless systems in wireless reliability and sound quality
- 2.4GHz Operation, free from interference due to TV broadcast, white space devices, and mobile phone towers.
- 14 selectable channels
- 300-Foot (100-meter) extended range
- Large LCD display on receiver for channel setting, model selection, battery status, and more
- Transmitter LCD Display - for selecting channels, battery status, microphone model, and more
- Signal encryption for maximum signal privacy and integrity
- Dynamic Filter to combat unwanted environment noise
- Gain control to optimize receiver output
- Channel Scanning for best RF management in multi-system applications
- 2 Powered BNC antenna inputs - for daisy chaining multiple systems
- Transmitter Naming - for identifying transmitters in a multi-system application
- Road-ready metal transmitter and receiver chassis
Polar Pattern
Omnidirectional
Available Frequency Bands
2.4 GHz
Signal Type
Digital
Antenna Type
External
Connector
Mini XLR
Microphone Model
HS70
Transmitter Model
TBP12
Receiver Model
XD-V75
Max Simultaneous Systems
14
