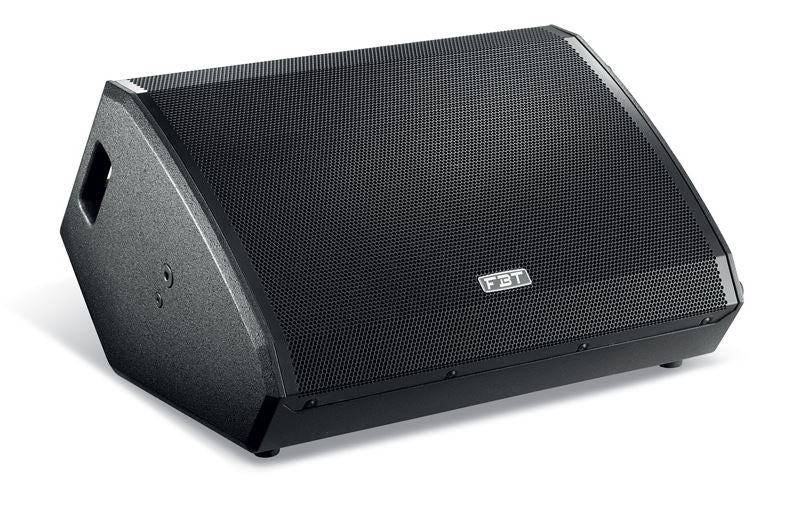

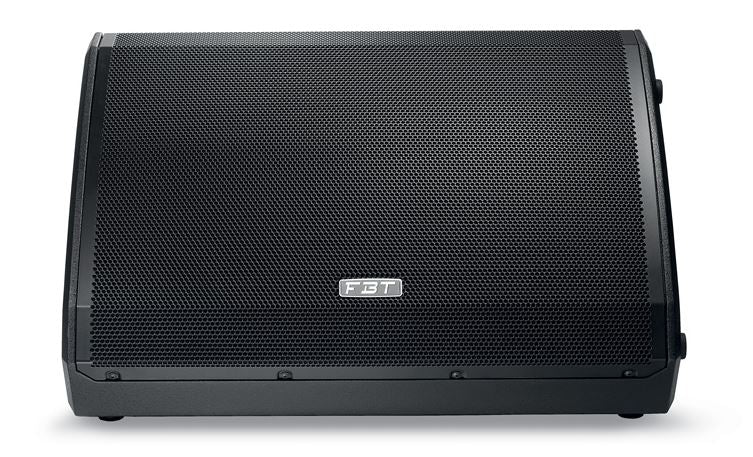

The 112MA and 115MA bring floor monitoring to VENTIS. Rated at 700W + 200W, the bi-amplified 112MA delivers 132dB SPL in a bass reflex design, using a 320mm (12”) coaxial custom woofer with a 64mm (2.5’’) voice coil, 25mm (1”) B&C throat and 44mm (1.7”) voice coil. The enclosure has a frequency response of 55Hz to 20kHz with 90° conical dispersion, while onboard DSP offers six factory presents for a broad range of scenarios. For flexibility in use, the monitor offers a 35mm (1.38’’) stand socket, two integrated carrying handles and an optional wall mount bracket. Alternatively, the passive 112M is rated at 400W into 8ohm delivering 129dB SPL, with a built-in passive crossover and speakon NL-4 In and Link Out connectors.
- 2-way bi-amplified, bass-reflex design
- 380 mm (15”) coaxial custom woofer with 64 mm (2.5’’) voice coil, 25mm (1”) exit throat B&C with 44mm (1.7”) voice coil
- Frequency response from 50Hz to 20kHz
- DSP with 6 factory presets (ORIG, HI-CUT/DRUM-FILL, LO-CUT/DOUBLE, FOH, VOCAL, TOURING)
- 90° conical dispersion
- 35 mm (1.38’’) stand socket, two integrated handles and optional wall mount bracket
Speaker Size (Inches)
15
Vertical Coverage Angle
90°
Output Power - Peak (Watts)
1400
Output Power - RMS (Watts)
700
Signal Processing (DSP)
1
Maximum Peak SPL
133 dB
Analog Ins
XLR with loop, RCA ST
Frequency Range
50Hz - 20KHz -6dB
Cabinet Type
35 mm (1.38’’) stand socket, two integrated handles and optional wall mount bracket
Horizontal Coverage Angle
90°
