Product Description

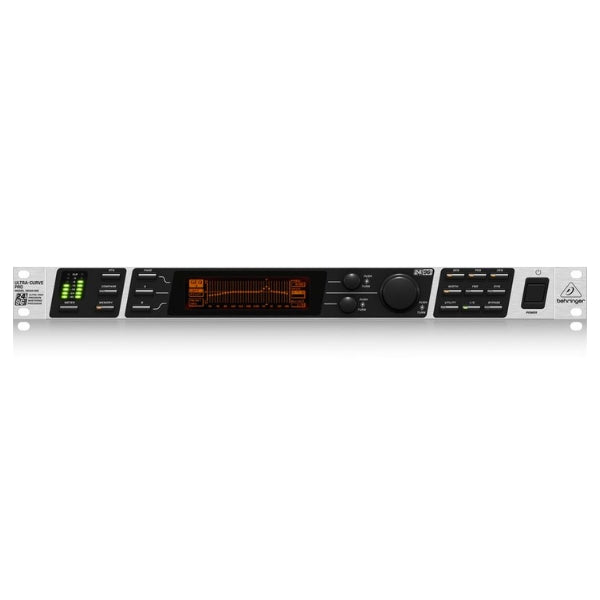

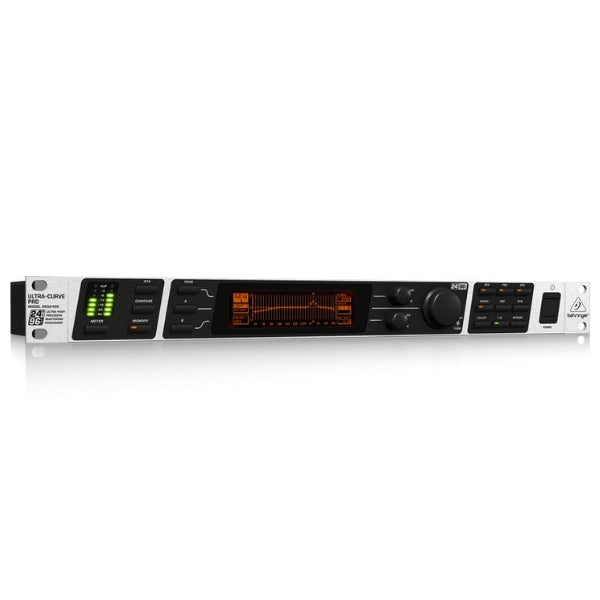

The Behringer DEQ2496 features high-quality AKM 24-bit/96 kHz A/D and D/A converters and two high-performance 32/40-bit floating-point SHARC digital signal processors for ultimate sonic resolution and 113 dB dynamic range.

Its extremely high audio performance makes it ideal for audiophile mastering and PA purposes. There are 4 concurrently selectable EQ modules (31-band graphic EQ, 10-band parametric EQ, Feedback Destroyer and three dynamic EQs per channel).

Another highlight is the additional 61-band RTA that can run simultaneously with the EQ section.

There are also multi-functional level meters (peak/RMS, VU and SPL meter with dBA/dBC weighting via RTA mic input) plus 64 user memories for complete setups and/or individual module configurations.

You get a separate RTA mic/line input with phantom power, a professional wordclock input and MIDI connections for full remote control, preset dumps and system updates.

The DEQ2496 also boasts balanced inputs and servo balanced outputs with gold-plated XLR connectors, stereo aux output, AES/EBU and S/PDIF inputs and outputs XLR and optical).

The internal switch-mode power supply assures maximum flexibility (100 - 240 V~), noise-free audio, superior transient response and lowest possible power consumption.

Key Features:

• Ultra high-resolution processor for all EQ, RTA and dynamic applications
• 4 concurrently selectable EQ modules (31-band graphic EQ, 10-band parametric EQ
• Feedback Destroyer plus three Dynamic EQs per stereo channel)
• Flexible Compressor/Expander function with Peak Limiter per stereo channel as well as additional Stereo Imager and Stereo Delay for delay line applications
• Unique VPQ (Virtual Paragraphic EQ) option allows parametric control of graphic EQs
• Ultra high-resolution 61-band real-time FFT Analyzer with additional auto EQ function for room and loudspeaker equalization
• Multi-functional level meters (peak/RMS, VU and SPL meter with dBA/dBC weighting via RTA mic input)
• 64 user memories for complete setups and/or individual module configurations
• Separate RTA mic/line input with phantom power, professional wordclock input and MIDI connections for full remote control, preset dumps and system updates
• Ultra high-quality AKM® 24-bit/96 kHz A/D- and D/A converters (113 dB dynamic range)
• Open architecture allowing future software updates via MIDI
• Two high-performance 32/40-bit floating-point SHARC® digital signal processors for ultimate sonic resolution

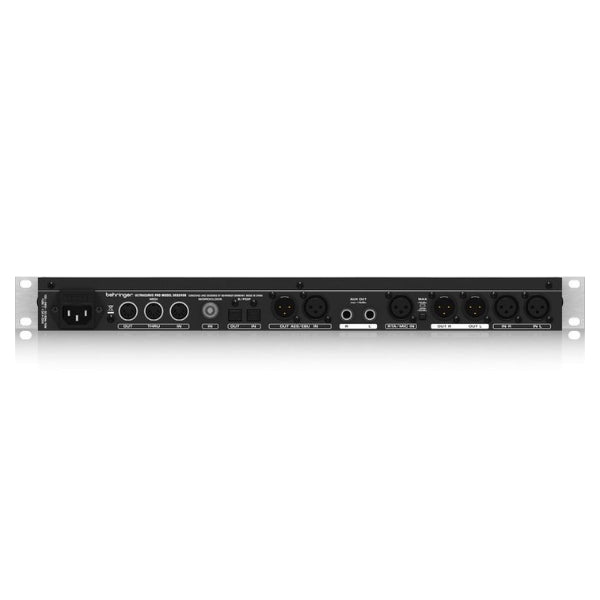

• Balanced inputs and servo-balanced outputs with gold-plated XLR connectors, stereo aux output, AES/EBU and S/PDIF inputs and outputs (XLR and optical)
