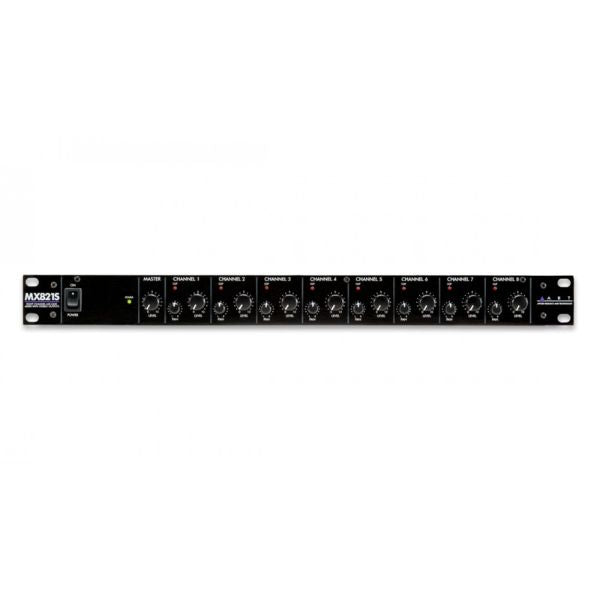

The ART MX821S is a versatile rack mount mixer combining eight independent input channels into a stereo line-level output. Each input channel accepts a balanced XLR microphone input or unbalanced 1/4-inch TS line-level signal and provides independent level and pan controls.
+48 Volt phantom power may be independently selected on each microphone input. A master level control adjusts the signal output to the low-impedance balanced 1/4-inch TRS jacks.
Prefade output (not affected by the master level control) and Aux Bus input RCA jacks allow patching of multiple units when more channels are needed
.
The ART MX821S may be used on stage, in the studio, or for permanent install applications including conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more. A built-in power supply and single high 19-inch rack mount format allows for easy installation and reliable long-term operation.
Key Features:
- Eight input channels with individual level and pan controls
- Pan controls place each input mono signal anywhere in the output stereo image

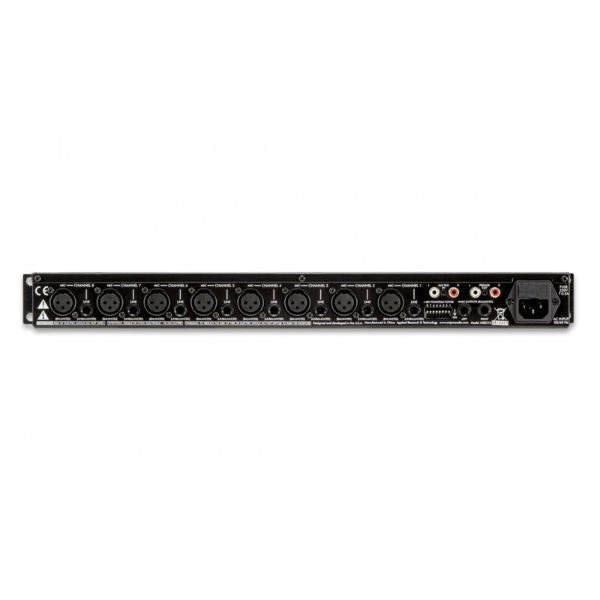

- Balanced microphone XLR or unbalanced 1/4-inch TS inputs on each channel
- Full +48V low noise phantom power switchable for each microphone input
- Balanced left and right 1/4-inch TRS main output jacks with master level control
- Prefade Output jacks and Aux Bus Input jacks allow units to be chained to provide extra inputs
- Each line input jack may be individually converted to a direct line output by means of internal jumpers
- Rugged 1U rack-mount steel chassis with built-in power supply
- Perfect for stage, studio and permanent installations
