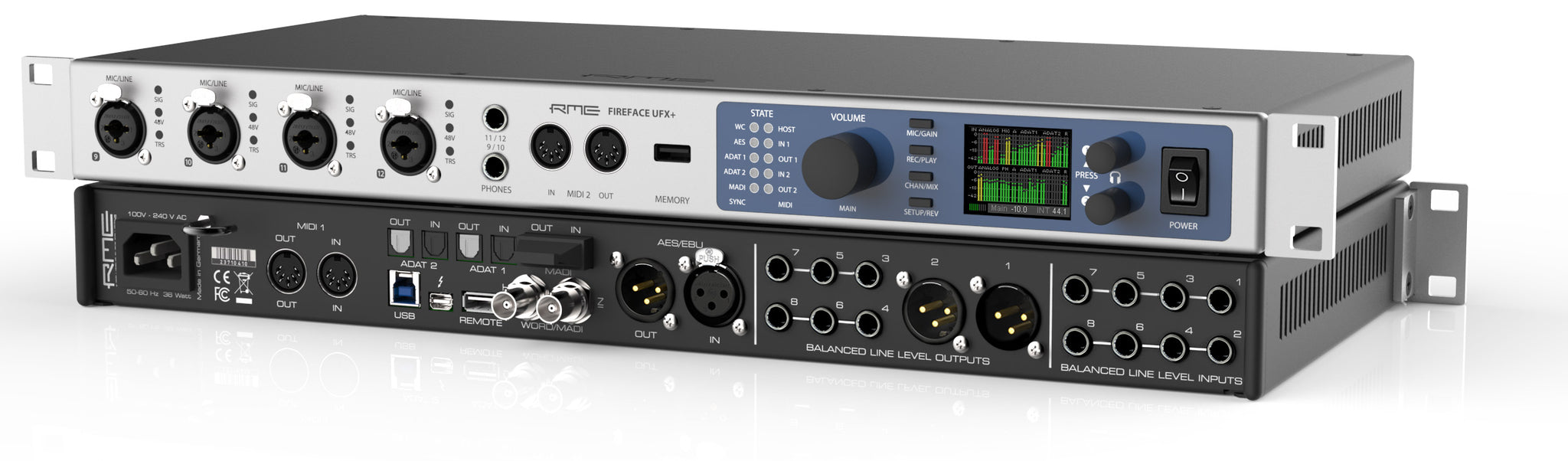

The Fireface UFX+ becomes the center of any multitrack studio because it is able to handle up to 94 channels I/O with ease. With unprecedented flexibility, compatibility, the inclusion of DURec (Direct USB Recording) and RME’s famous low latency hardware and driver designs, the Fireface UFX+ raises the bar to new heights.Packed with features not found on its older sibling, including MADI I/O (188 channels of I/O, 128 channels more than the Fireface UFX), a more powerful DSP, USB 3.0, Thunderbolt™ technology, and a new optional remote control firmly places the RME Fireface UFX+ as the new reference in multitrack recording, mixing and monitoring.
Its flexibility in connectivity and expansion is unrivalled – Analog, ADAT, MADI, AES, SPDIF. USB 2, USB 3 and Thunderbolt technology are standard on the Fireface UFX+. The UFX+ has an impressive channel count: 12 analog + 16 ADAT + 2 AES + 64 MADI = 94 channels input plus output = 188 channels in total. Thunderbolt technology gives the Fireface UFX+ real PCI Express audio performance under Mac and Windows, with lowest latency, lowest system overhead and lowest CPU load.
The Fireface UFX+ is fully Thunderbolt technology compatible under Windows, including hot-plugging.All new AD/DA converters, optimized analog I/O circuits, as well as improved SNR and THD values guarantee pristine, crystal clear and transparent audio. A new PAD-free mic circuit design with +18 dBu maximum input level and 75 dB gain range serves even the most critical recording situation and source trouble-free.New low impedance Hi-Power phones outputs (2 Ohms) with +19 dBu maximum output level provide ample output power as well as volume on any phones, high or low impedance.
Key features
- 94 Input / 94 Output channels
- 12 x Analog I/O
- 4 x Mic/Instrument Preamp, digitally controlled
- 1 x AES/EBU I/O
- 2 x ADAT I/O (or 1 x ADAT I/O plus 1 x SPDIF I/O optical)
- 1 x Word Clock I/O / MADI Coaxial
- 1 x MADI optical I/O
- 2 x MIDI I/O
- 1 x Thunderbolt™ connectivity
- 1 x USB 3.0
- TotalMix FX
- optional: Advanced Remote Control USB
