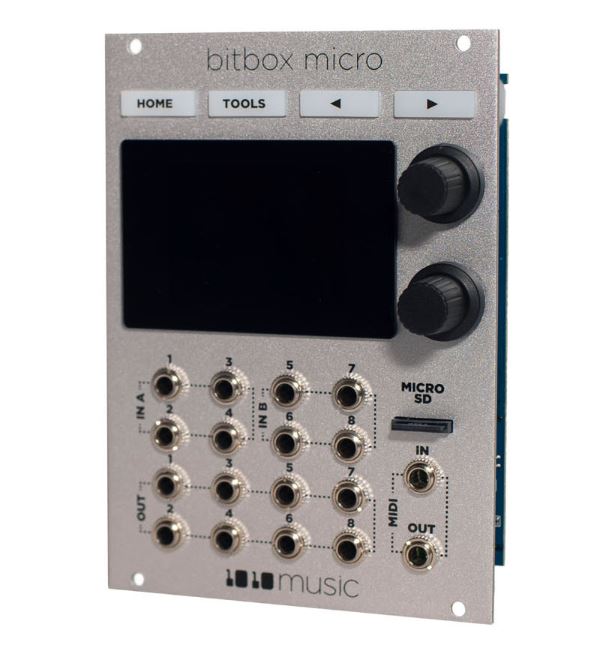

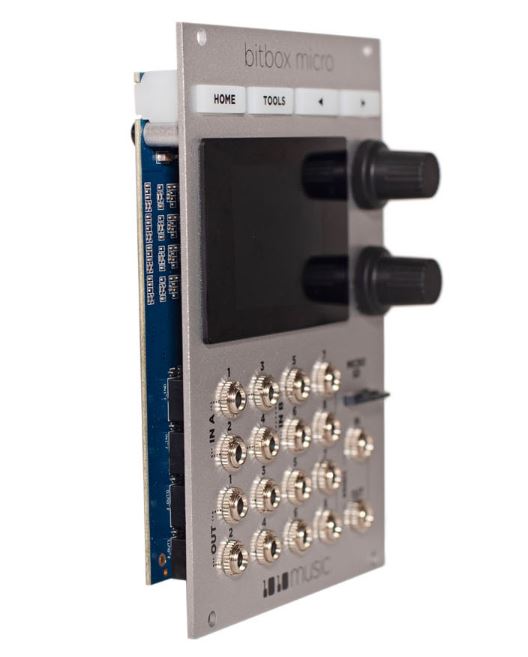

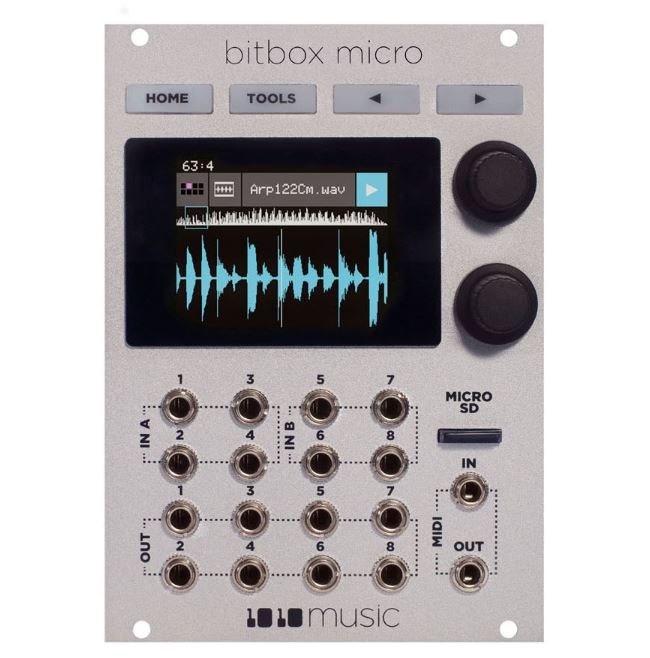

Bitbox micro provides Eurorack sampling for smaller racks and smaller budgets. In only 18 HP of rack space you can get a touch screen based sampler with support for 8 stereo sample pads. Now you can record samples directly into the module or load them from the microSD card. Trigger your samples via CV or MIDI, then apply effects and mix the outputs. Save your configurations to multiple presets for later reuse.

With the sampling features of bitbox micro you can add interesting new ways of generating sound and music to your Eurorack. Trigger one shots, play time synched loops or record live looping. Bitbox micro is equally at home in your studio or as a component of your live performance.

Key Features:

• Play up to 24 stereo polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger stereo samples streaming directly from the microSD card
• Configure 8 stereo sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
• Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
• Trigger samples with the touch screen, CV gate inputs, or MIDI input
• Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
• Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping
• Use the 8 inputs the way you want: assignments include a stereo audio input, up to 8 gate inputs, up to 8 CV inputs and 1 clock input.
• Route the audio from each pad out to one of 3 stereo audio outputs or one of 6 mono audio outputs
• Listen to all of the pad outputs combined on the master stereo output
• Inputs and outputs are DC coupled so you can record and play out CV signals
